Prolumia Pro-Vision mini 18 LED, 2.800lm, optics 3, 4.000K
| Serie: | Prolumia LED Pro-Vision |
| Art. nr: | 41341421 |
| EAN: | |
| User unit: | 1 PCE |
| Brand: | Prolumia |
| Type: | 41341421 |
| Manufacturer number: | 41341421 |
- Pre-assembled cable
- Dimregime standard included
- Tool-free mounting
Gross price (excl. VAT)
€ 547,00 Per 1 piece
€ 547,00 Per 1 piece
Raymond Sakko
Customer service
Do you have any questions?
Our specialists are ready for you
Customer service: Call us on: 123456
Order: I want an account
Questions: start the live chat
Our specialists are ready for you
Customer service: Call us on: 123456
Order: I want an account
Questions: start the live chat
Description
The LED Pro-Vision series are stylish and modern designed luminaires. The mini, midi and maxi versions are used in public lighting of pavements, bicycle paths, district access, connecting and provincial roads. Also lighting of parking lots, company sites and around public buildings are appropriate application areas.Product features
| Subgroup | LED Pro-Vision Mini |
| Brand | Prolumia |
| Mounting method | Post top/side entry |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 |
| Lamp holder | Other |
| Housing material | Aluminium |
| Surface protection | Powder coating |
| Housing colour | Grey |
| Material cover | Glass transparent |
| Voltage type | AC |
| Nominal voltage | 220 - 240 Volt |
| Nominal current | 350 Milliampere |
| With control gear | Yes |
| Type of control gear | LED operating device current-controlled |
| Exchangeable control gear | Yes |
| Dimming 0-10 V | Yes |
| Dimming 1-10 V | Yes |
| Dimming GPRS | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming Touch and Dim | No |
| Dimming programmable | Yes |
| Dimming with push-button | No |
| No dim function | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Zigbee | No |
| Light distributor | Focal lens |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Adjustable optics | No |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Rated life time L80/B10 at 25 °C | 100000 Hour |
| Degree of protection (IP) | IP66 |
| Impact strength | IK08 |
| Protection class according to IEC 61140 | II |
| Rated ambient temperature according to IEC 62722-2-1 | -30 - 50 Degrees celsius |
| Remote control | None |
| With radio control | No |
| Constant light output (CLO) | No |
| With light regulation program control | No |
| With connection cable | Yes |
| Cable length | 1 Metre |
| Rated luminous flux according to IEC 62722-2-1 | 2300 Lumen |
| Max. system power | 21 Watt |
| Luminaire efficacy | 109.5 Lumen/Watt |
| Colour of light | White |
| Colour temperature | 4000 Kelvin |
| Colour rendering index CRI | 70-79 |
| Power factor | 0.9 |

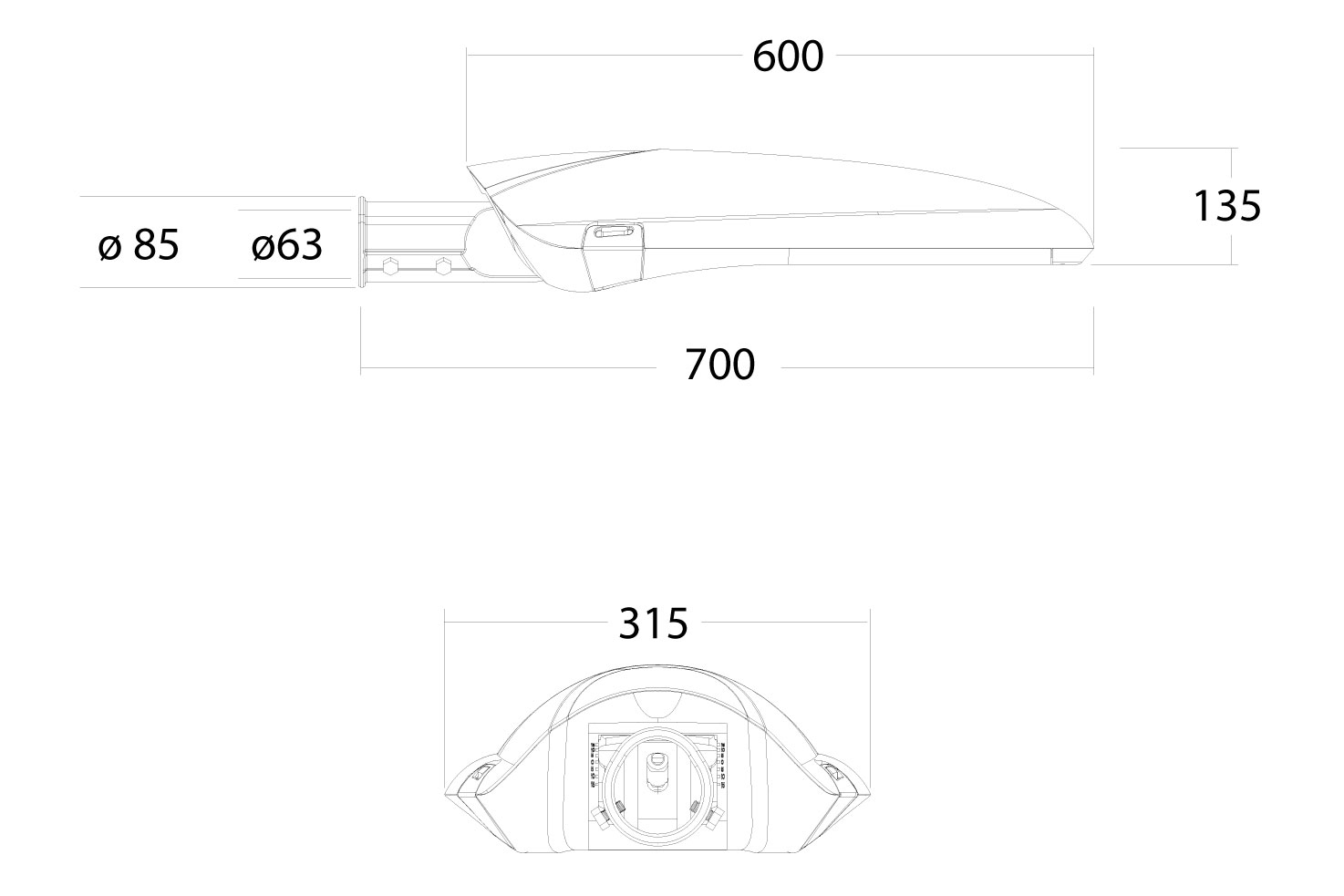

| Width | 315 Millimetre |
| Height/depth | 135 Millimetre |
| Length | 700 Millimetre |
| Suitable for spigot size | 60 Millimetre |
| Type of wiring | Ending |
| Number of poles | 3 |
| Compatible with Apple HomeKit | No |
| Conductor cross section | 1.5 Square millimetre |
| Compatible with Google Assistant | No |
| Connection type | Screwed terminal |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operation by Bluetooth | No |
